Millennium Falcon Coffee Table
Crafted from solid walnut and designed specifically around the dimensions of the LEGO Millennium Falcon, this custom coffee table blends furniture design and display functionality into a single handcrafted piece. The result is a durable, elegant showcase that turns a prized collectible into the centerpiece of a room.
The Challenge
As a fellow Star Wars fan, the customer wanted to build and display the LEGO Millennium Falcon, but needed a way to protect it from dust, curious cats, and accidental damage. The solution needed to do more than simply enclose the model—it had to become a functional piece of furniture that showcased one of the most iconic spacecraft in science fiction.
Several design challenges had to be overcome. The large size of the Falcon required a substantial footprint, while the structure itself needed to remain visually light so the focus stayed on the model. The frame had to provide enough strength to support the glass top while maintaining an elegant appearance.

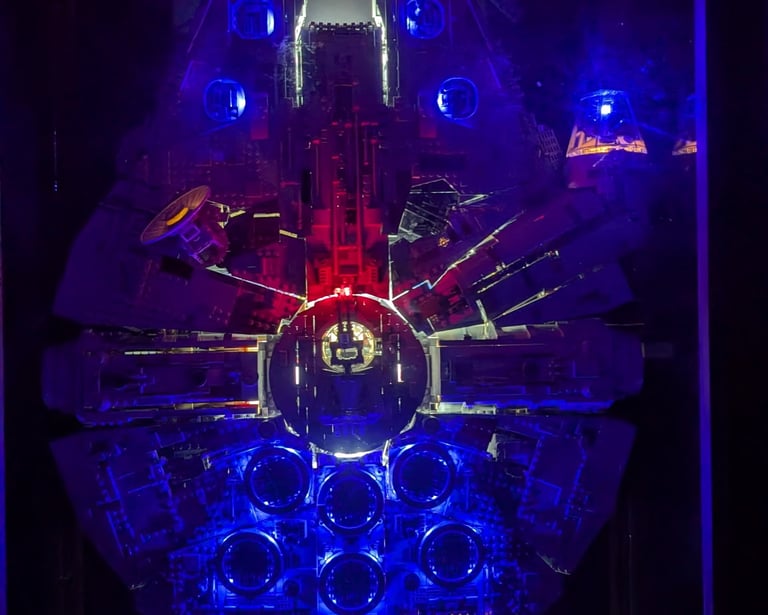

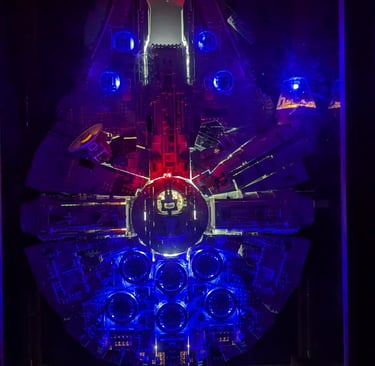

The customer had also installed lighting inside the Falcon, which meant the design needed to provide easy access to both the model and the lighting controls without compromising the clean look of the finished piece.
Design & Planning

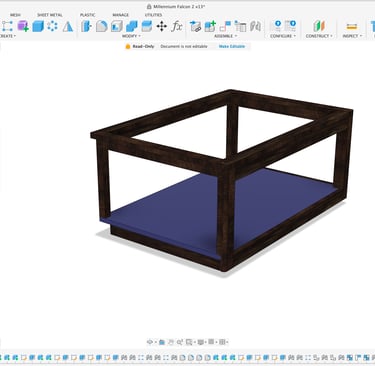

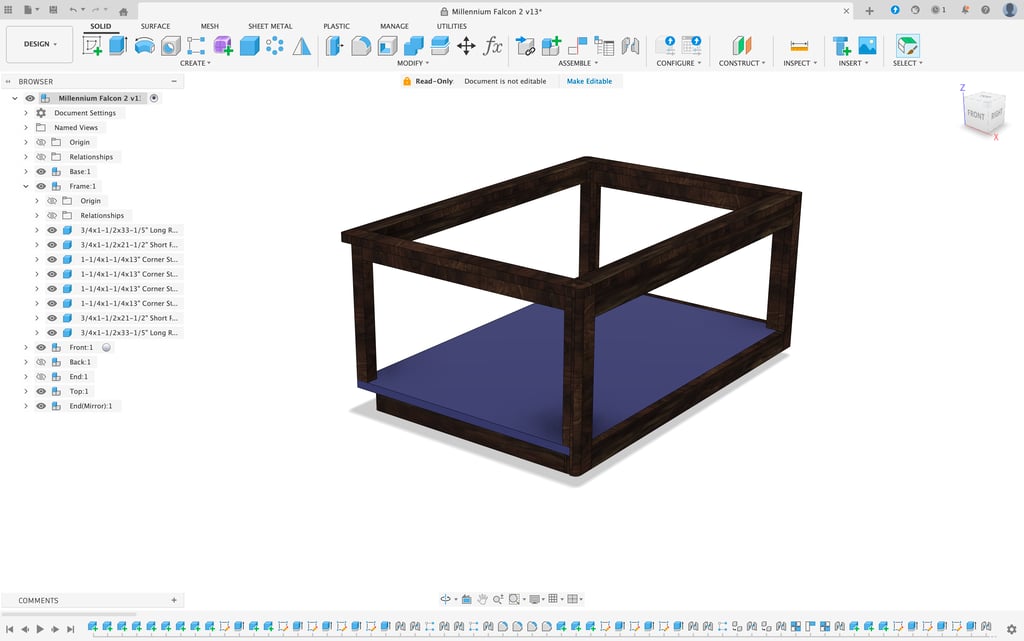

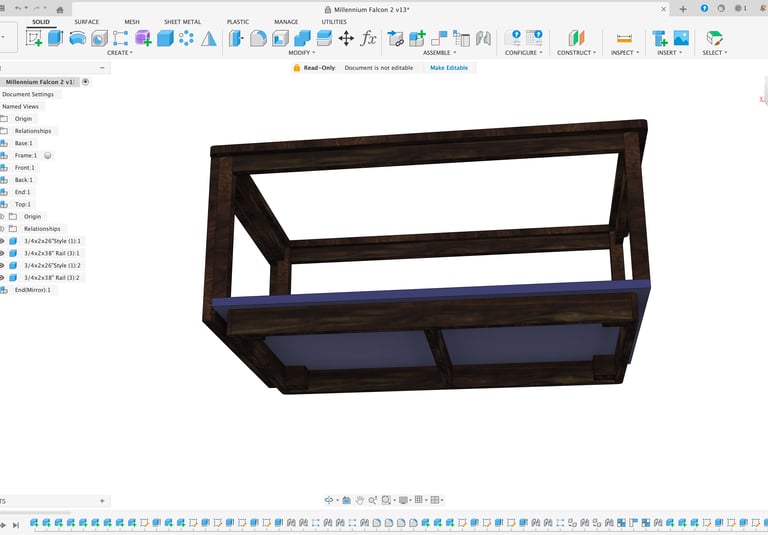

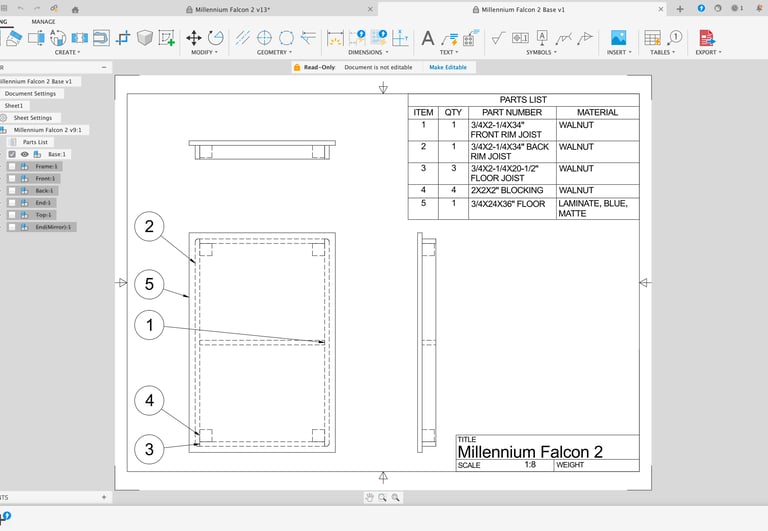

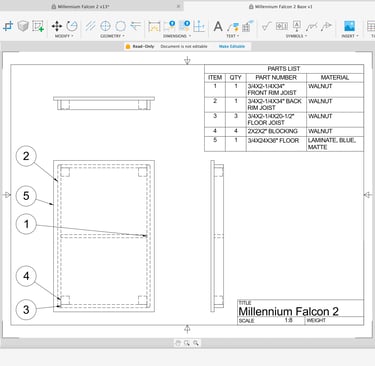

Every custom project starts with a plan. Before any wood was cut, the table was designed in Fusion 360 to ensure the finished piece would meet both the customer's needs and the structural requirements of the build.
The design needed to balance several competing goals. The frame had to be strong enough to support the weight of the glass while remaining visually light so the Millennium Falcon remained the focal point. The dimensions had to provide adequate clearance for the model while still functioning as a practical coffee table.
Special consideration was also given to accessibility. Since the customer had installed lighting inside the Falcon, the design incorporated a removable side panel that would allow access to both the model and the lighting controls without sacrificing the clean appearance of the finished piece.
By working through these details in the design phase, the construction process could proceed with confidence and precision.
Material Selection

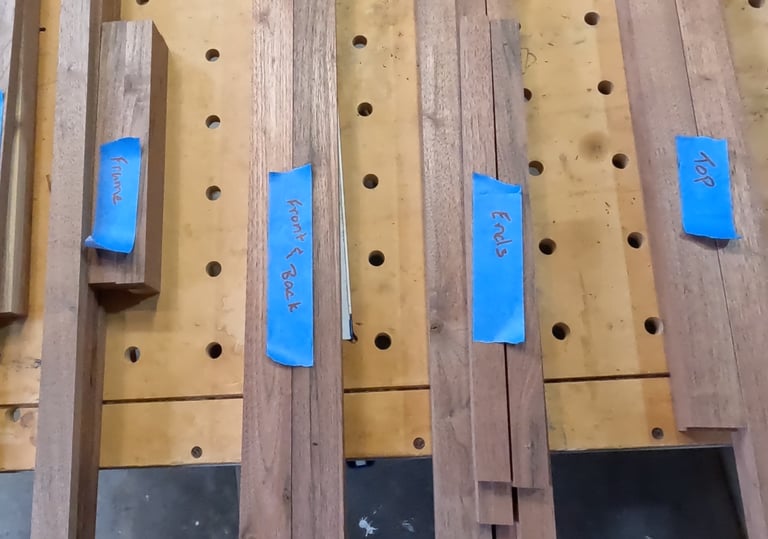

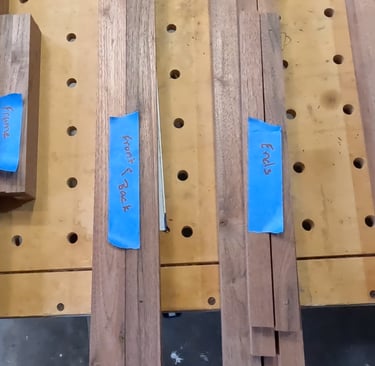

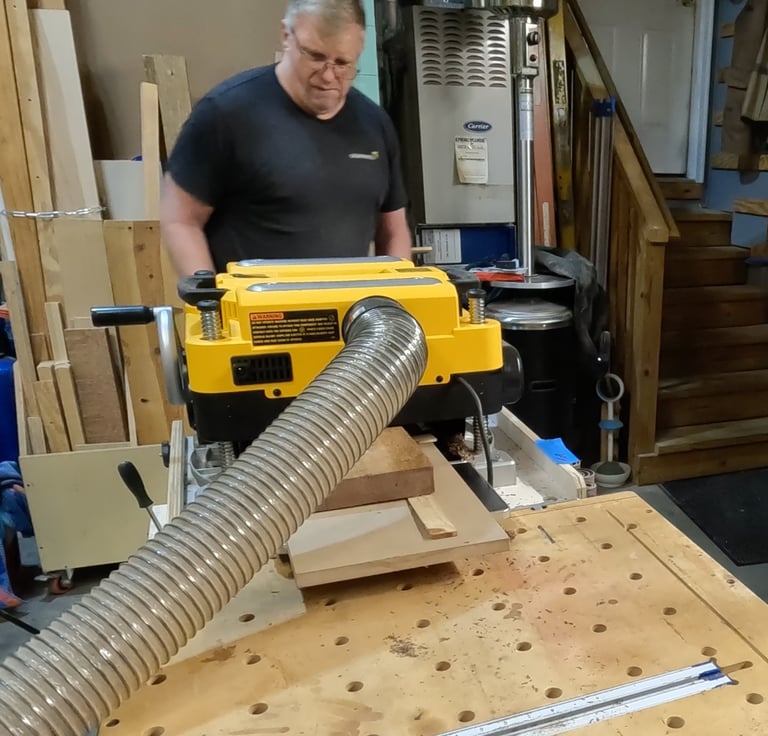

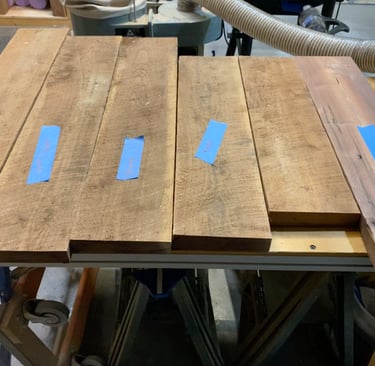

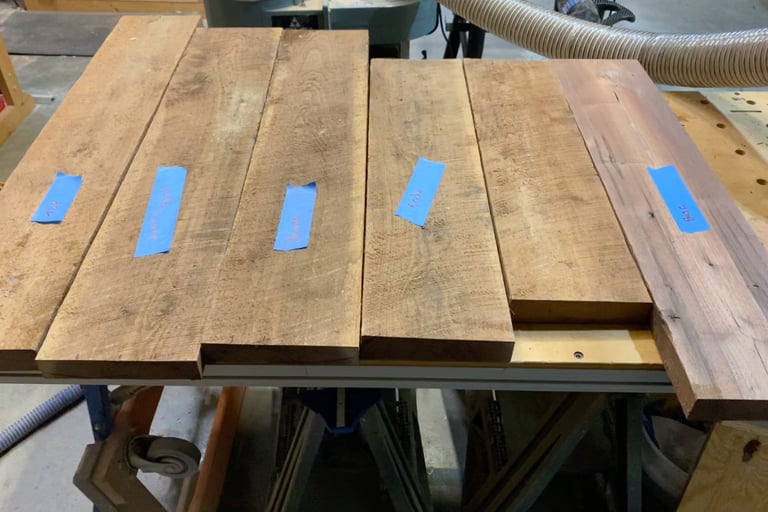

After selecting the lumber, each board was rough cut to length and milled flat and square to provide accurate, stable stock for the build. Careful preparation at this stage ensured the precision needed for the joinery and glass panels later in the project.
With the design finalized, construction began with selecting the right materials for the project. Solid walnut was chosen for the frame because of its strength, stability, and rich grain patterns. Its dark color complements the Millennium Falcon and creates a timeless appearance that elevates the piece beyond a simple display case.

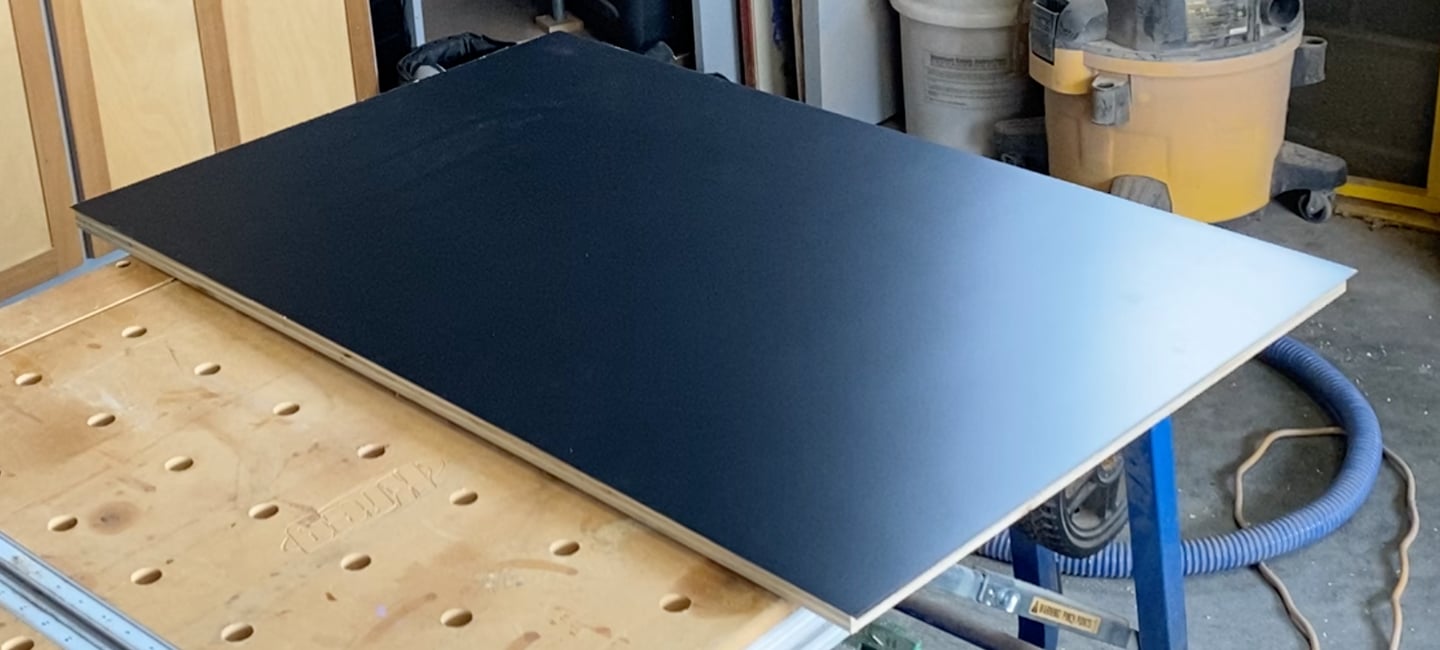

The display platform was cut from a single sheet of plywood and covered with black veneer. The dark surface creates the illusion of the Millennium Falcon flying through the darkness of space while providing a durable foundation for the model and display case.
Building the Base
Construction began with the display platform, which serves as the foundation for the entire piece. The base was cut from a single sheet of plywood to provide a stable and rigid surface for both the display case and the Millennium Falcon itself.

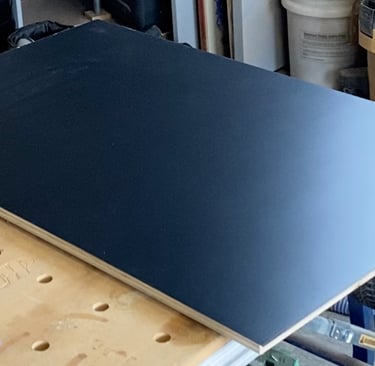

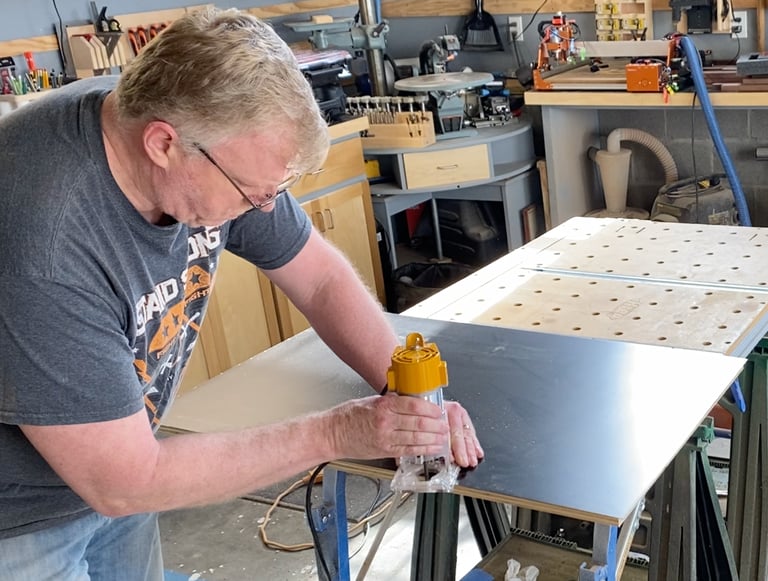

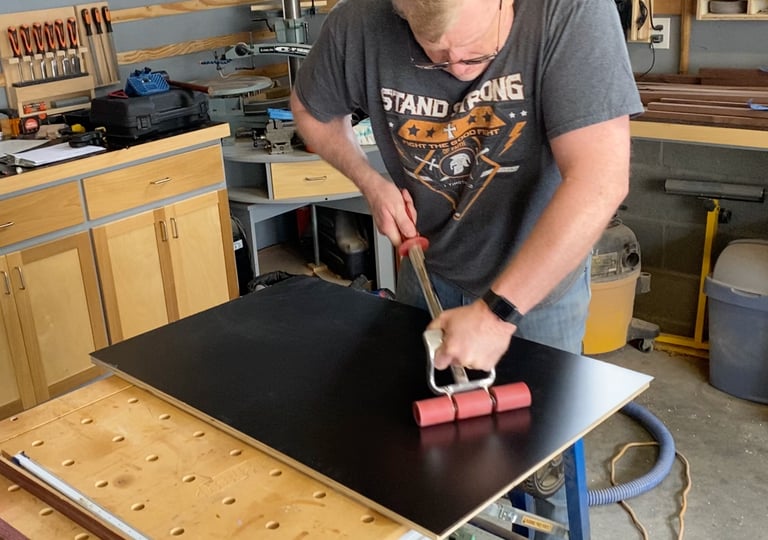

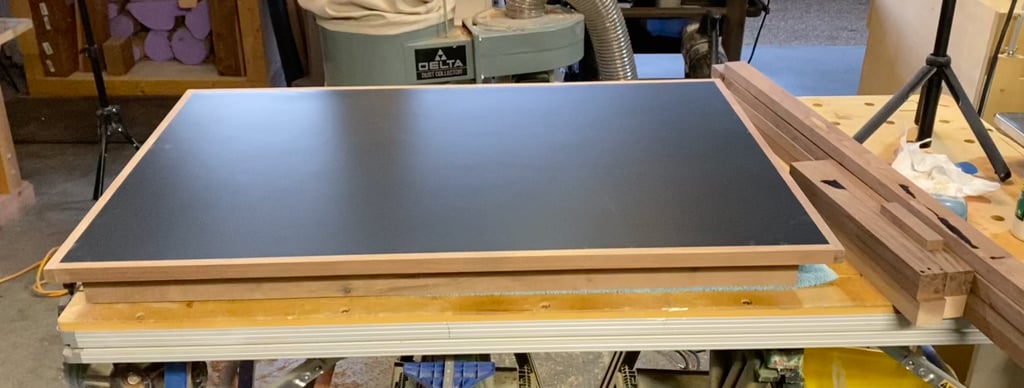

To create the appearance of the ship flying through space, the top surface was covered with black veneer. Once the veneer was trimmed flush, a solid walnut border was added around the perimeter to conceal the plywood edges and frame the display area.

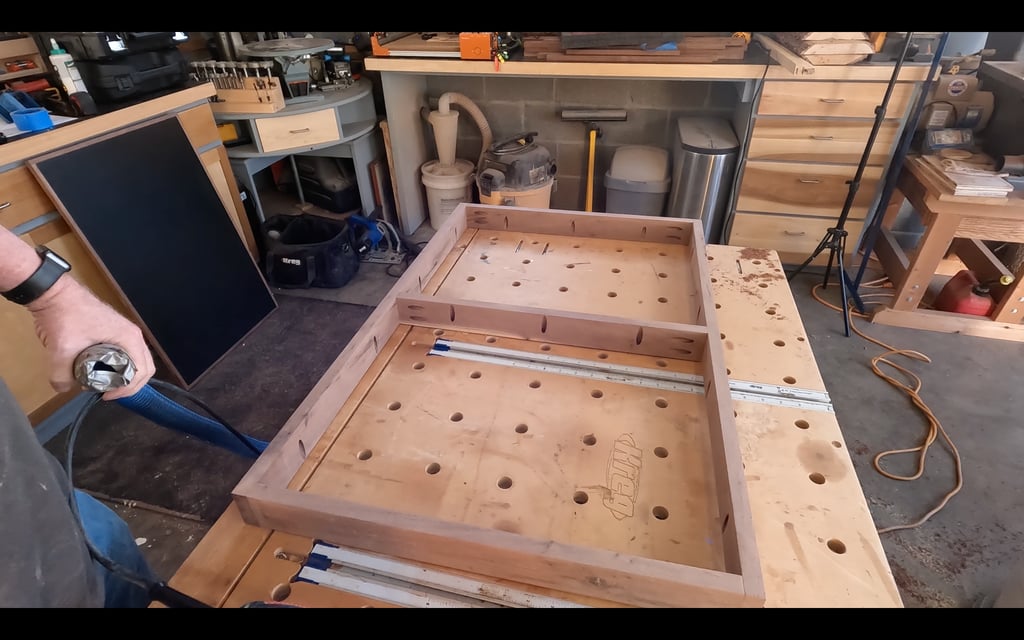

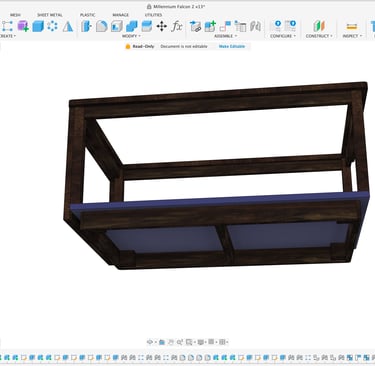

Beneath the display platform, a recessed support frame was constructed to give the table a floating appearance. Built using pocket-hole joinery, this lower frame provides strength and stability while remaining visually unobtrusive. The result is a base that supports the display while allowing the Millennium Falcon to remain the centerpiece of the design.
Building the Structure

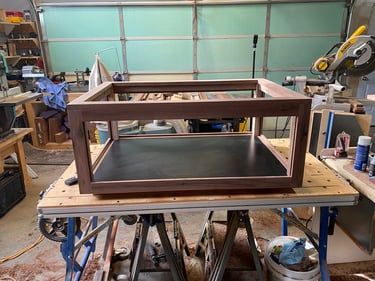

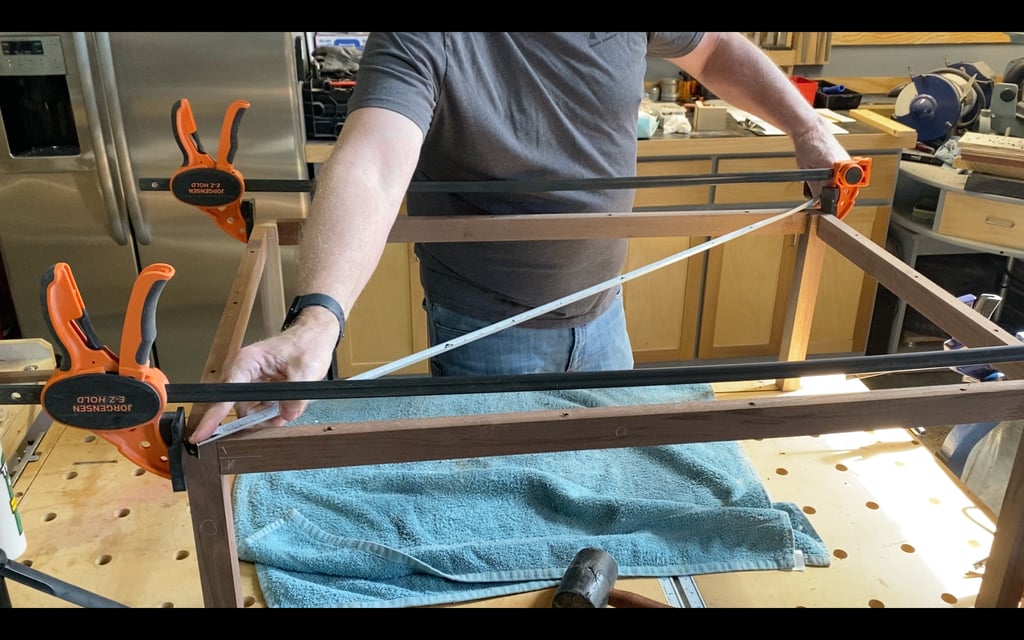

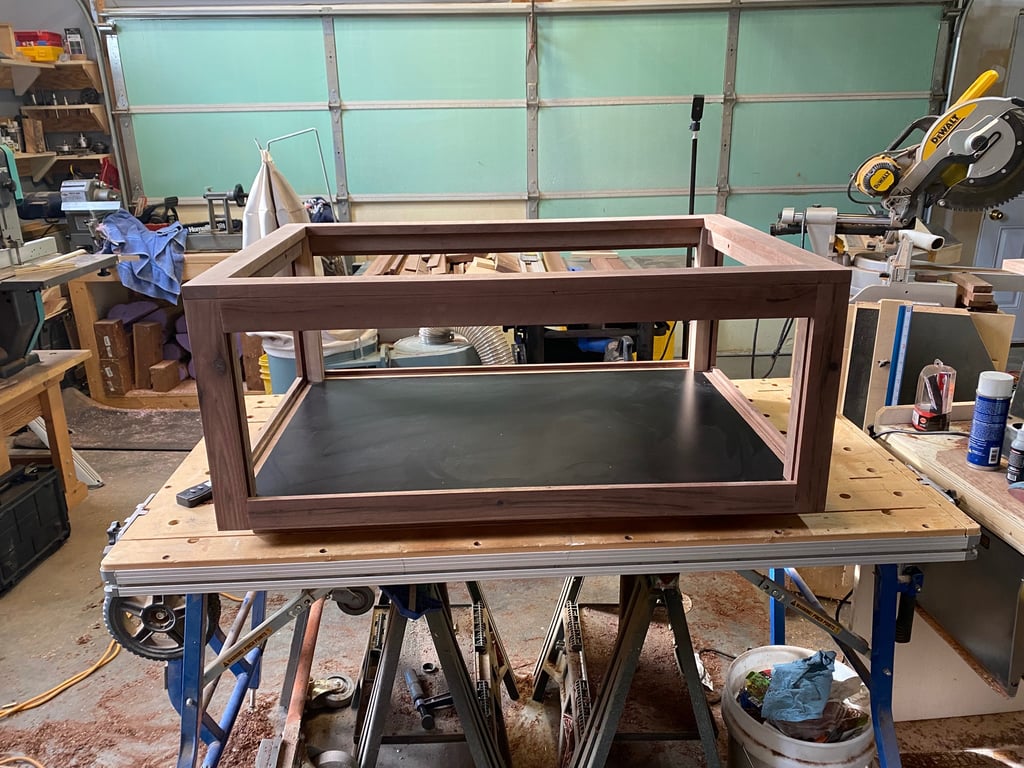

With the base complete, attention turned to building the display case itself. Corner posts were securely attached to the platform to provide the foundation for the upper structure and support the weight of the glass enclosure.
As the individual components came together, the project began to transform from a collection of parts into a functional piece of furniture. The combination of strong joinery and carefully selected materials created a structure capable of protecting the Millennium Falcon while showcasing it from every angle.

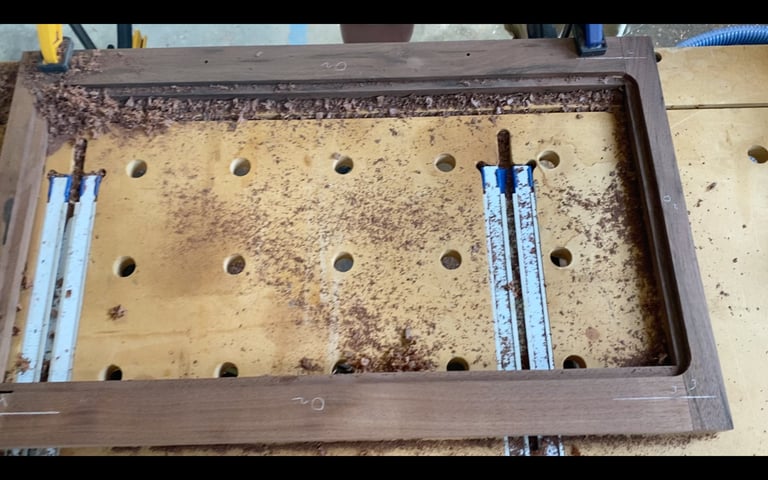

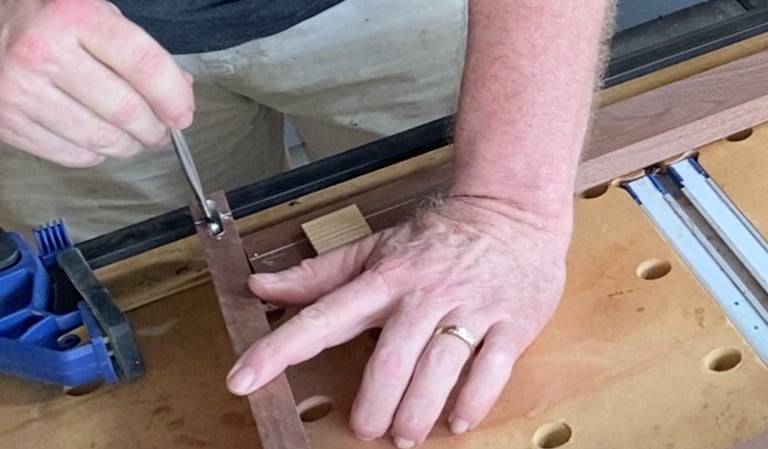

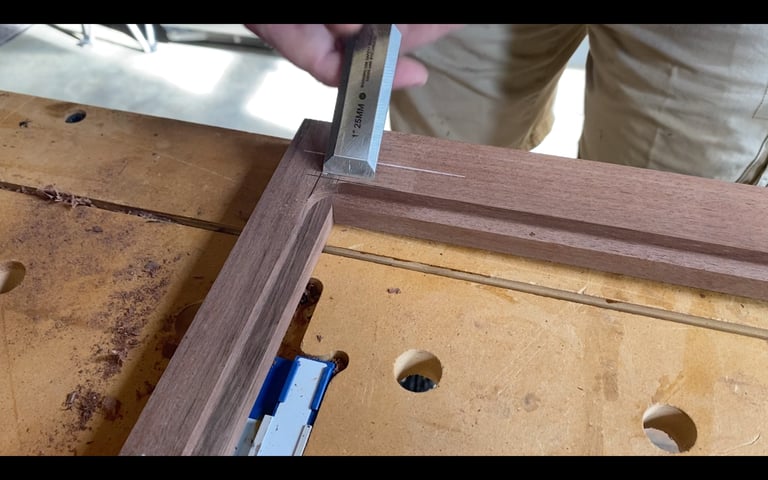

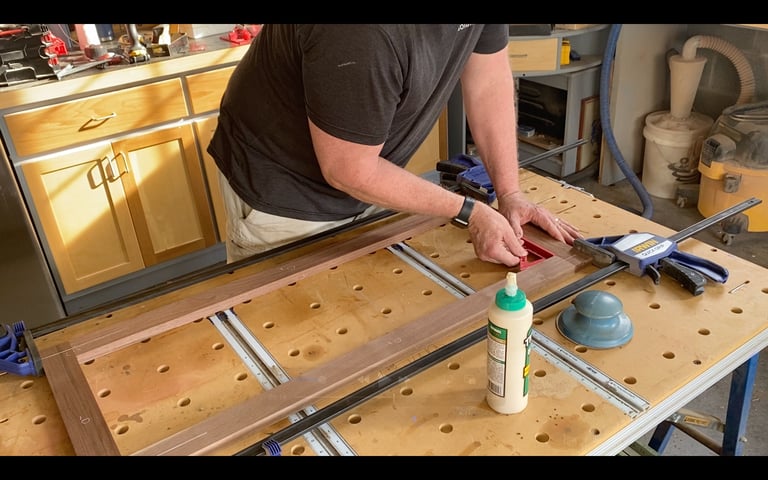

The side assemblies were constructed from solid walnut using floating tenon joinery, providing both strength and precise alignment. Rabbets were carefully cut into the frame components to support the glass panels and top while maintaining clean lines and a seamless appearance.
Finishing & Final Assembly
Once the finish had cured, the table was brought together for final assembly. Glass panels and the top were installed, transforming the frame into a fully enclosed display case. A removable side panel secured with hidden pins and magnets provides access to the model and lighting controls while preserving the clean appearance of the piece.
The completed assembly combines strength, functionality, and craftsmanship to create a display worthy of one of the most iconic spacecraft in science fiction.

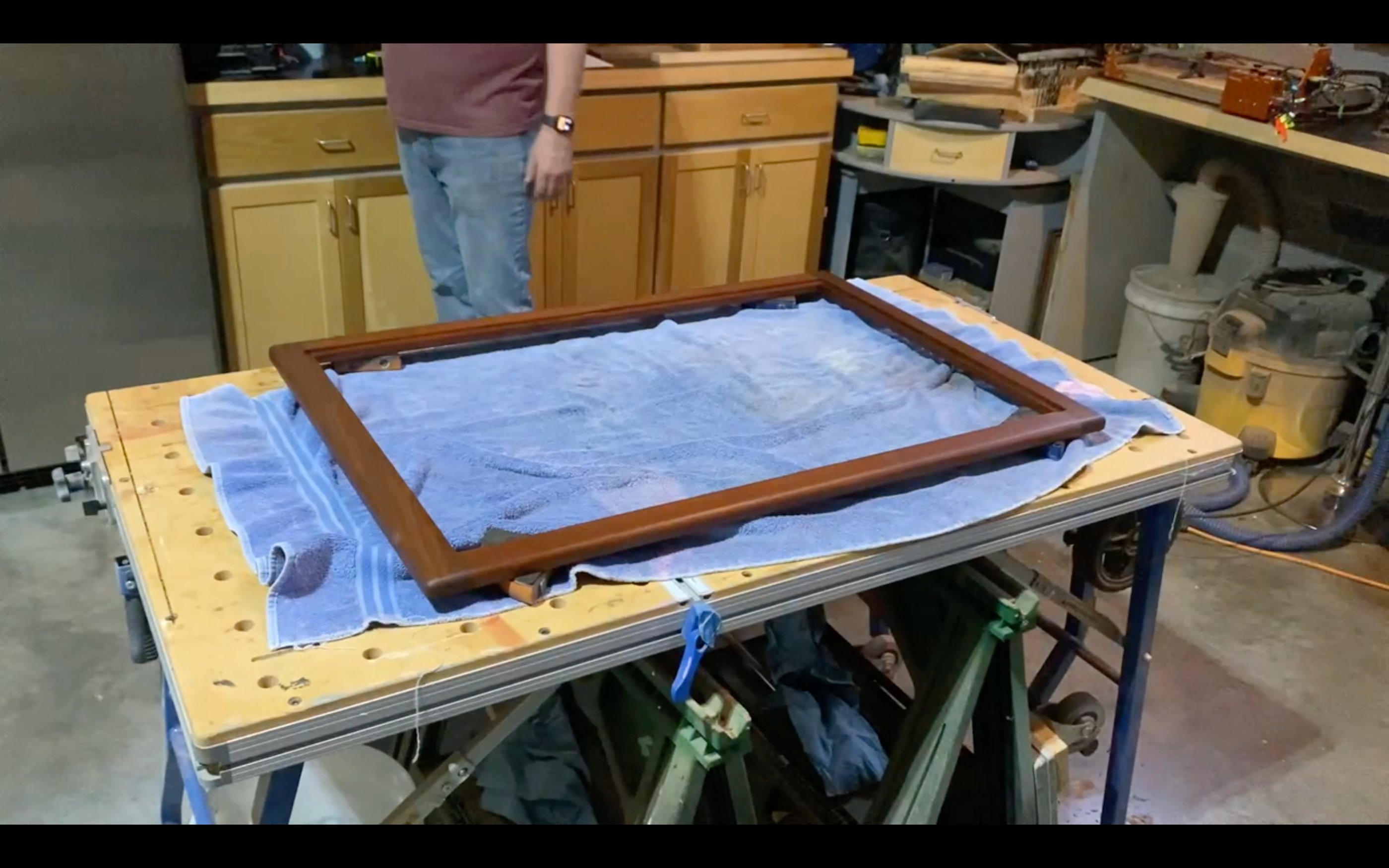

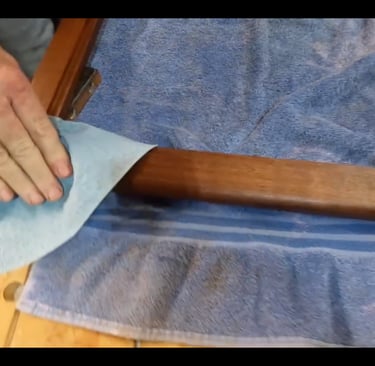

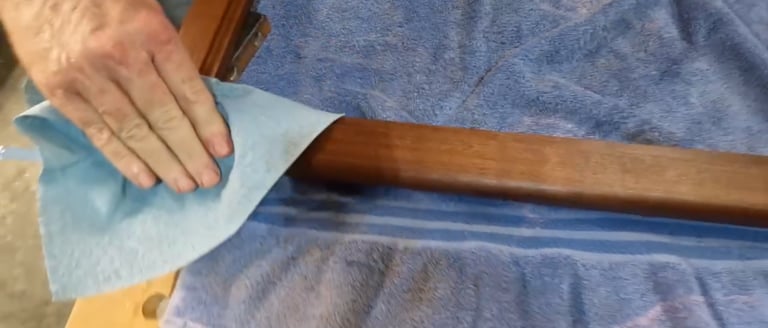

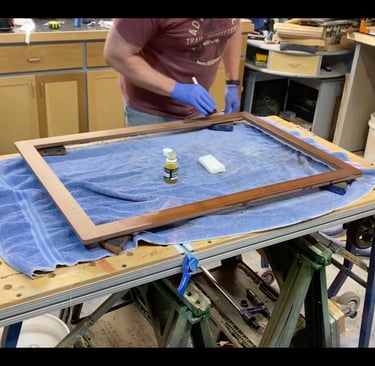

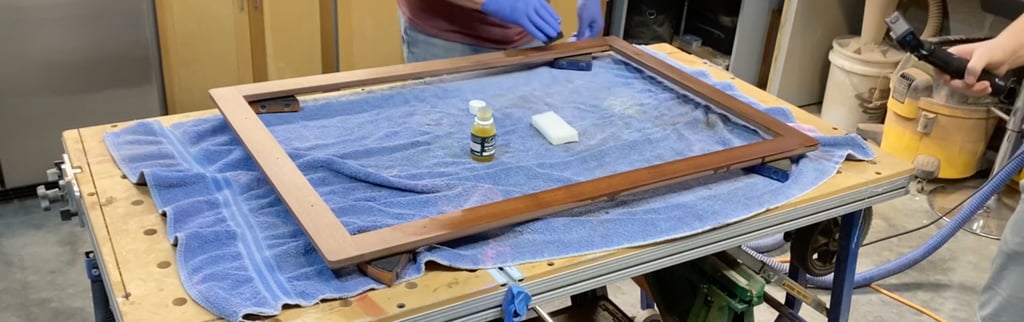

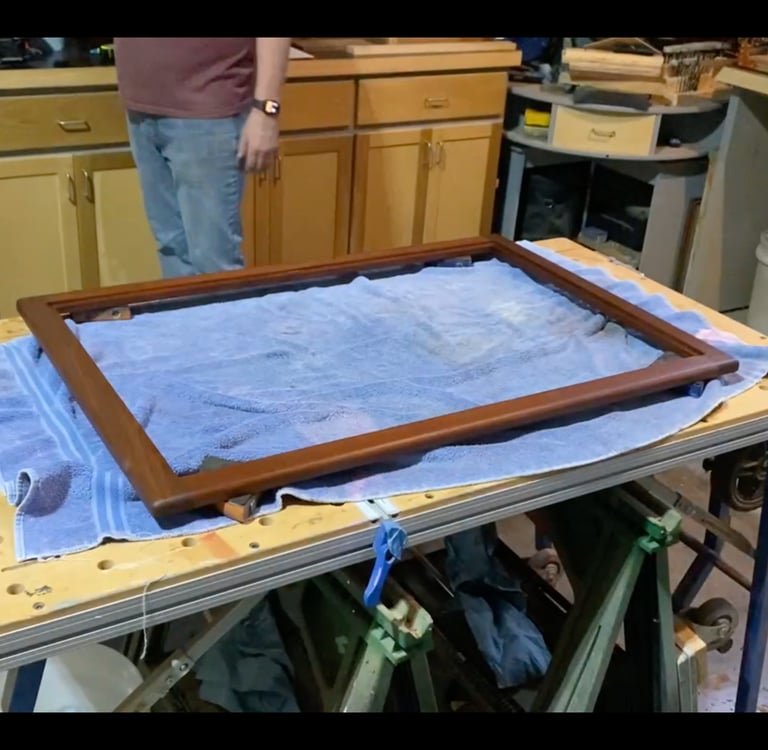

With the structure complete, all of the components were carefully sanded through 180 grit in preparation for finishing. Rubio Monocoat Pure was chosen to protect the wood while allowing the natural beauty of the walnut to take center stage. The finish enhances the rich color and grain patterns that make walnut such a timeless material.

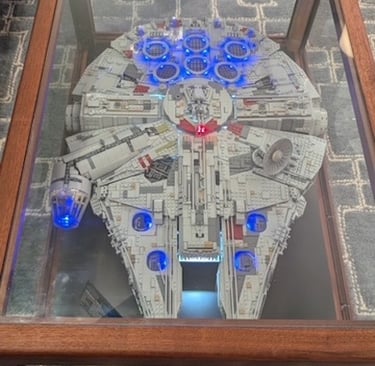

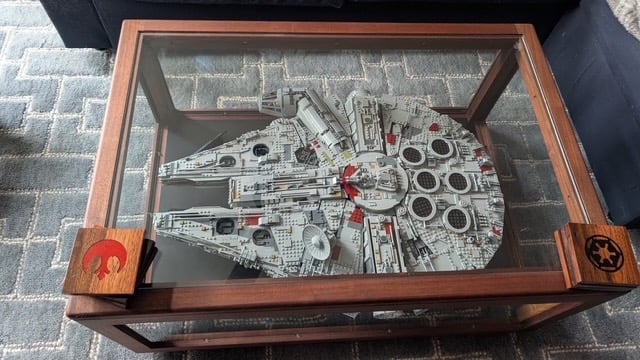

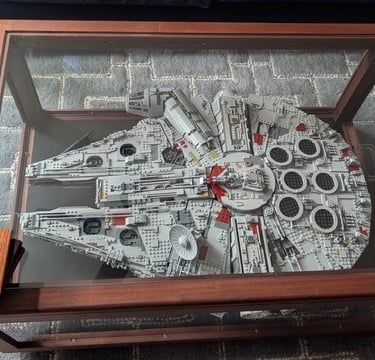

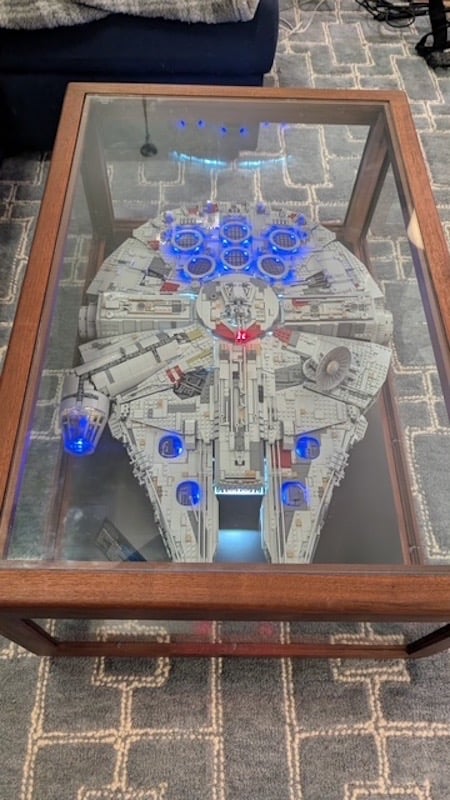

The Finished Piece
What began as a custom request from a fellow Star Wars fan became a one-of-a-kind piece that combines fine woodworking with a love of one of the most recognizable spacecraft in science fiction.

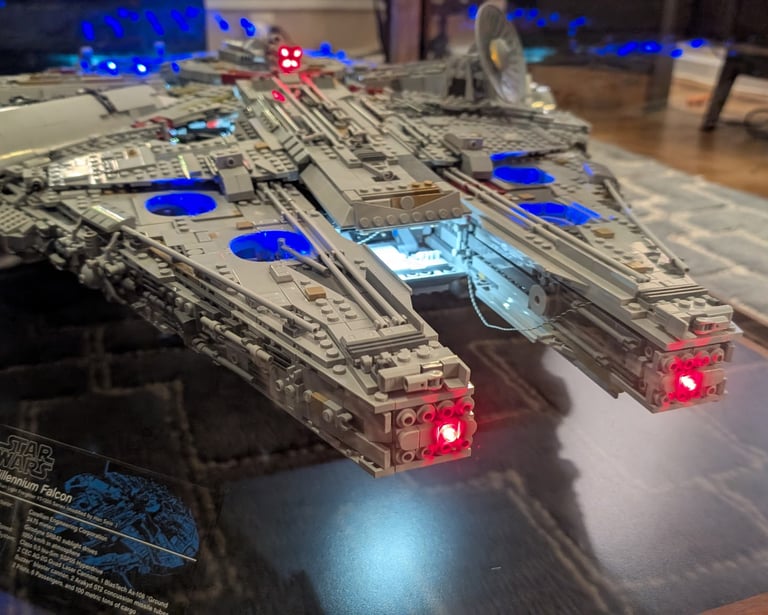

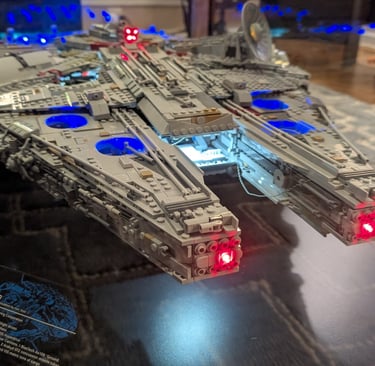

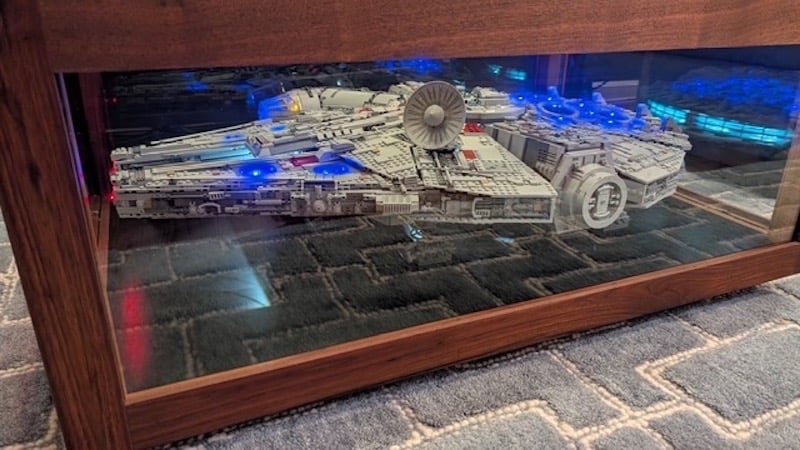

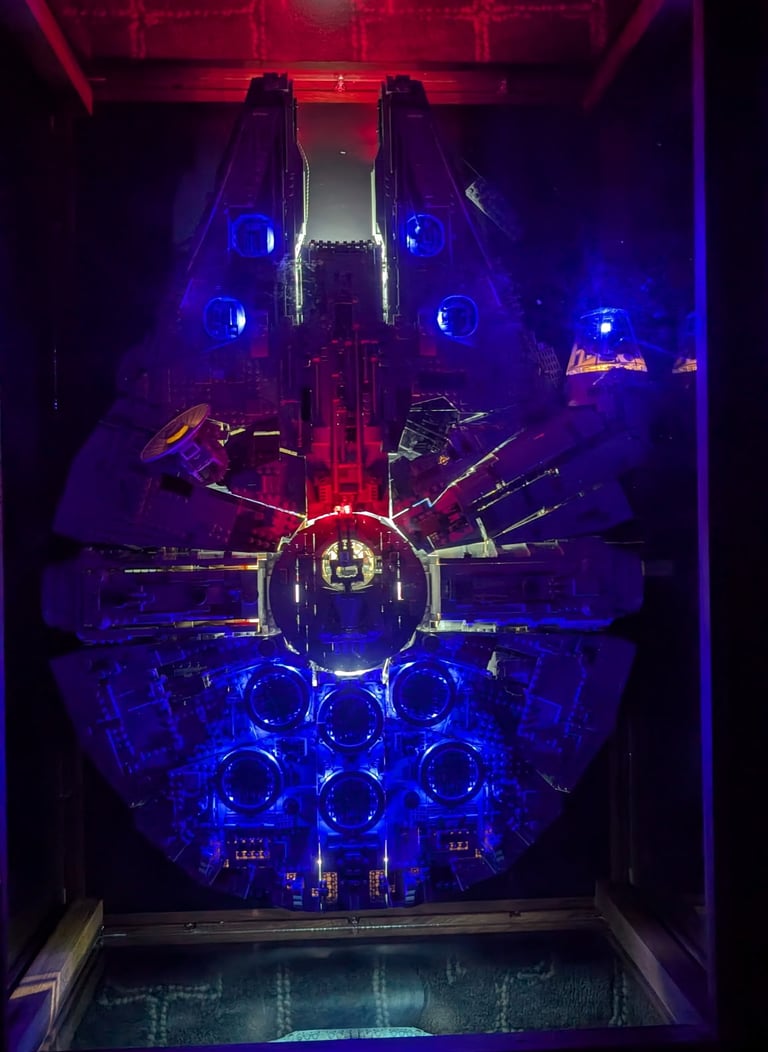

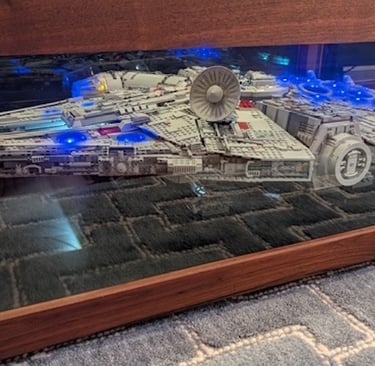

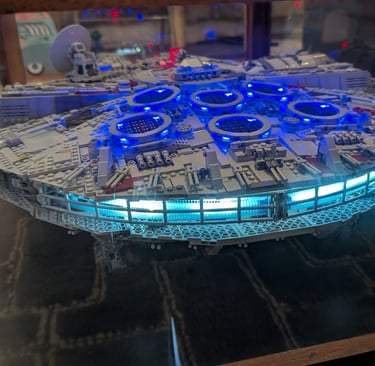

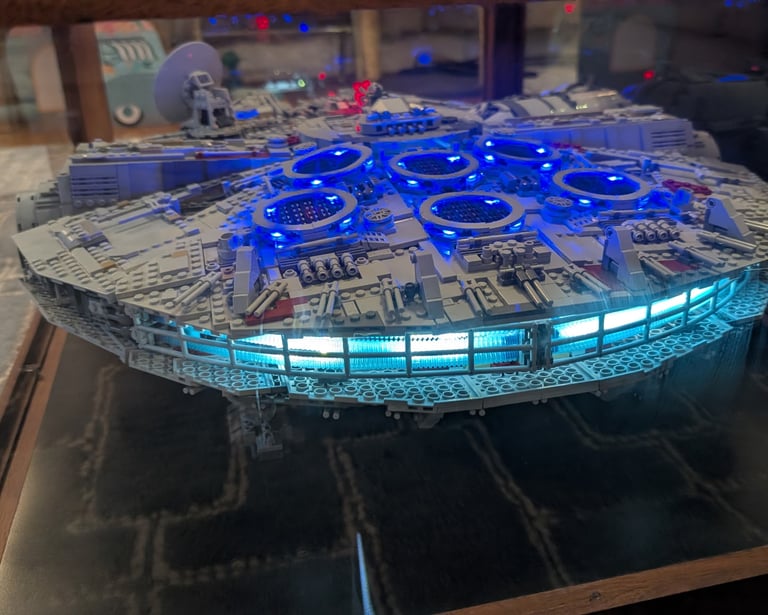

The finished walnut coffee table provides a safe and elegant home for the LEGO Millennium Falcon while serving as a functional centerpiece for the room. The enclosed design protects the model from dust, pets, and accidental damage, while the removable access panel allows the owner to easily reach the model and its lighting controls when needed.
Built from solid walnut and finished with Rubio Monocoat Pure, the table highlights the natural beauty of the wood while placing the focus where it belongs—on the Millennium Falcon itself. The result is a piece that is both practical and personal, designed to be enjoyed for years to come.
Project Details
Project Type: Custom Commission
Designed In: Fusion 360
Primary Material: Solid Walnut
Display Base: Black Veneered Plywood
Joinery: Floating Tenons and Pocket-Hole Construction
Finish: Rubio Monocoat Pure
Special Features: Glass Display Case, Floating Base, Removable Access Panel
Purpose: Functional Coffee Table and LEGO Millennium Falcon Display
